Ultrasonic Thickness Meter TM8812 TM-8812 manufacturer from China Guangzhou Landtek Measuring Instruments Co.Ltd.

Product Detail

Model No.: TM-8812

Production Capacity: 2000/pcs/month

Delivery Date: 3--5days

type: separate type

resolution: 0.1 mm

power supply: 4 x 1.5 V AAA (UM-4) Batter...

Means of Transport: Ocean,Land,Air

Packing: carton

Brand Name: landtek

measuring range: 1.0~200 mm / 0.04~8 inch

data output: USB,RS232C,Bluetooth

Plastic thickness gauge
Rubber thickness gauge
Metal digital thickness gauge
Ultrasonic thickness gauge

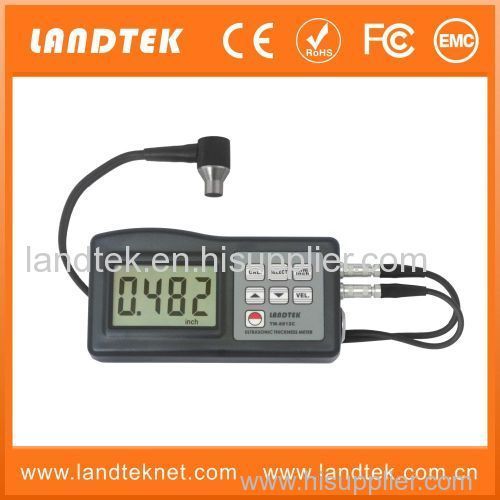

Ultrasonic Thickness Meter TM-8812

Applications:

Used for measuring thickness and corrosion of:

*Pressure vessels,chemical equipment.

*Boilers,oil storage tanks,etc.in industries of petroleum.

*Shipbuilding,power station,and machine manufacturing.

*Measture the cast iron thickness,aluminum thickness,quartz glass thickness,PVC thickness,PE thickness,red copper thickness etc.

Features:

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB data output and RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Details:

Display	4 Digit, 10 mm LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	1.0~200 mm / 0.04~8 inch
Battery Indication	Low Battery Indication
Sound Velocity	500~9990 m/s
Lower Limit Steel Pipes	Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block	Included
Resolution	0.1 mm
Accuracy	± (0.5%n + 0.1)
Automatic memory material code and the value of sound velocity
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	120 x 62 x 30 mm
Weight	164 g (Not Including Batteries)
